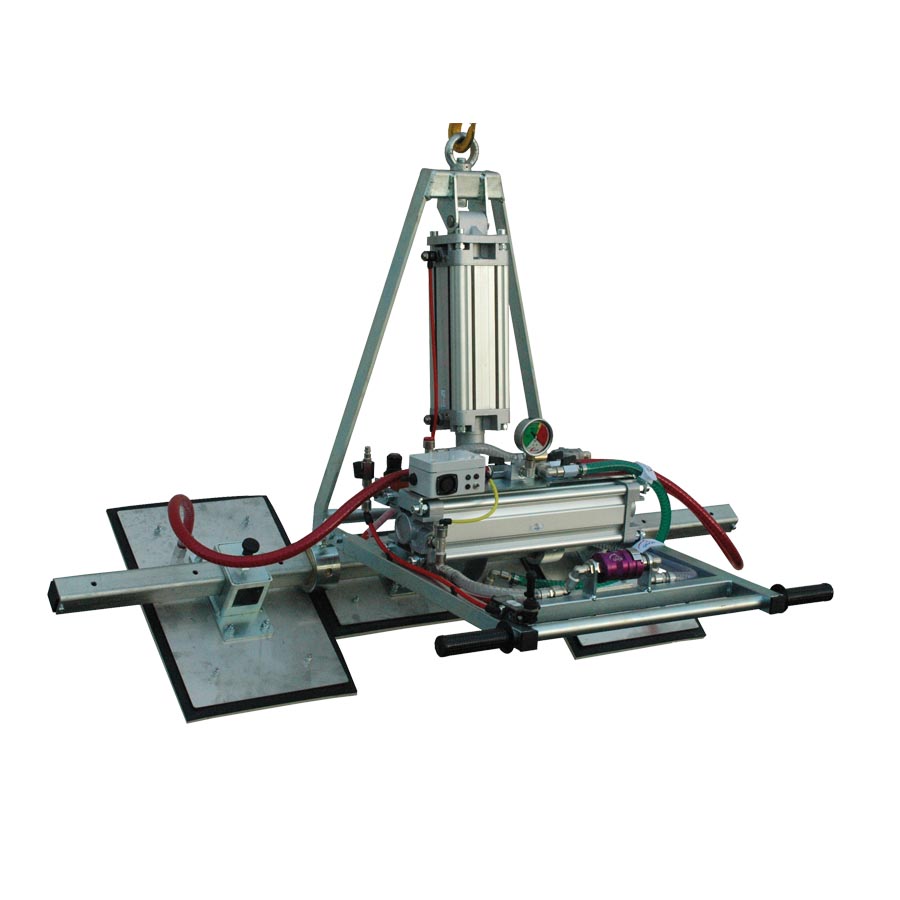

Manzelli Vacuum Lifter VAM 3 PN

Capacity from 375 to 1250kg / Pneumatic tilting from 0° to 90°

• Powered with compressed air ejector with aluminium silencer
• Exercise pressure for rotation 6 bar
• Operating pressure 3.5 bar for creating vacuum
• Air consumption 95l/min
• Welded steel structure
• Plates and counter suction plates in stainless steel
• Plate connection and disconnection by means of slider valve in anodised aluminium locking in the “connect position”
• Vacuum gauge in stainless steel dipped in glycerine with coloured scale in view to facilitate the control of the vacuum’s grade in the “connect” position
• Reserve aluminium vacuum tank
• Electric-powered self governing luminous acoustic alarm system with solar panels completed of battery charger
