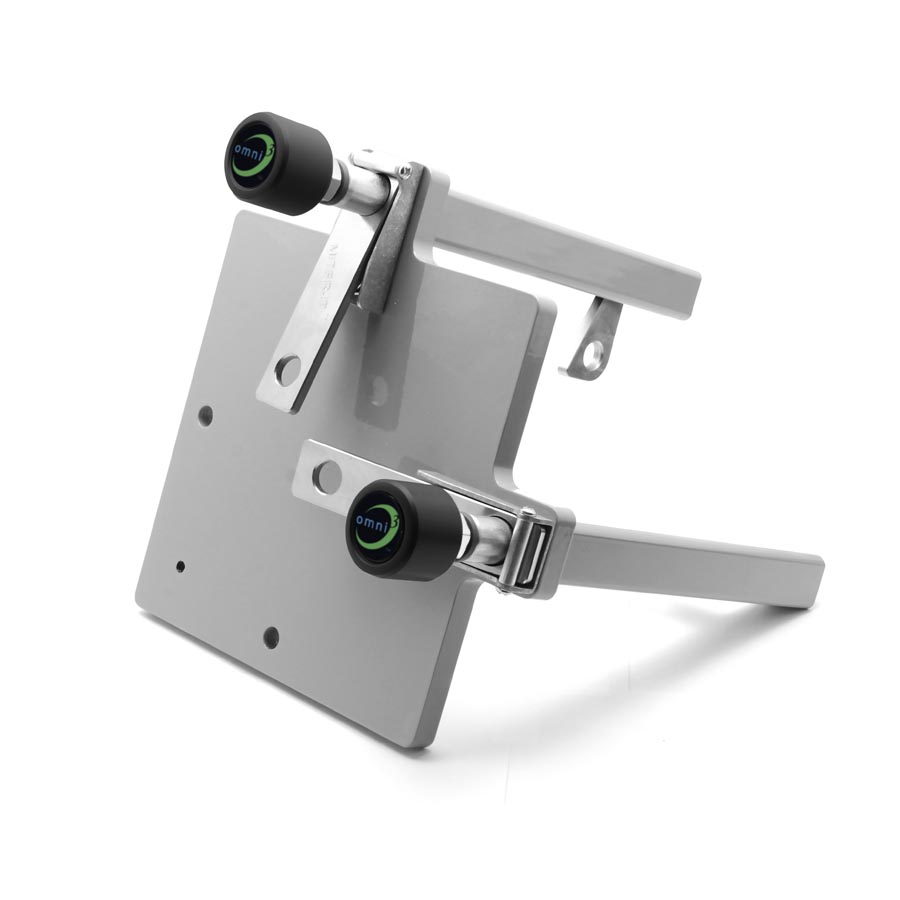

Omni Cubed, inc. Miter-It Corner Setting Tool

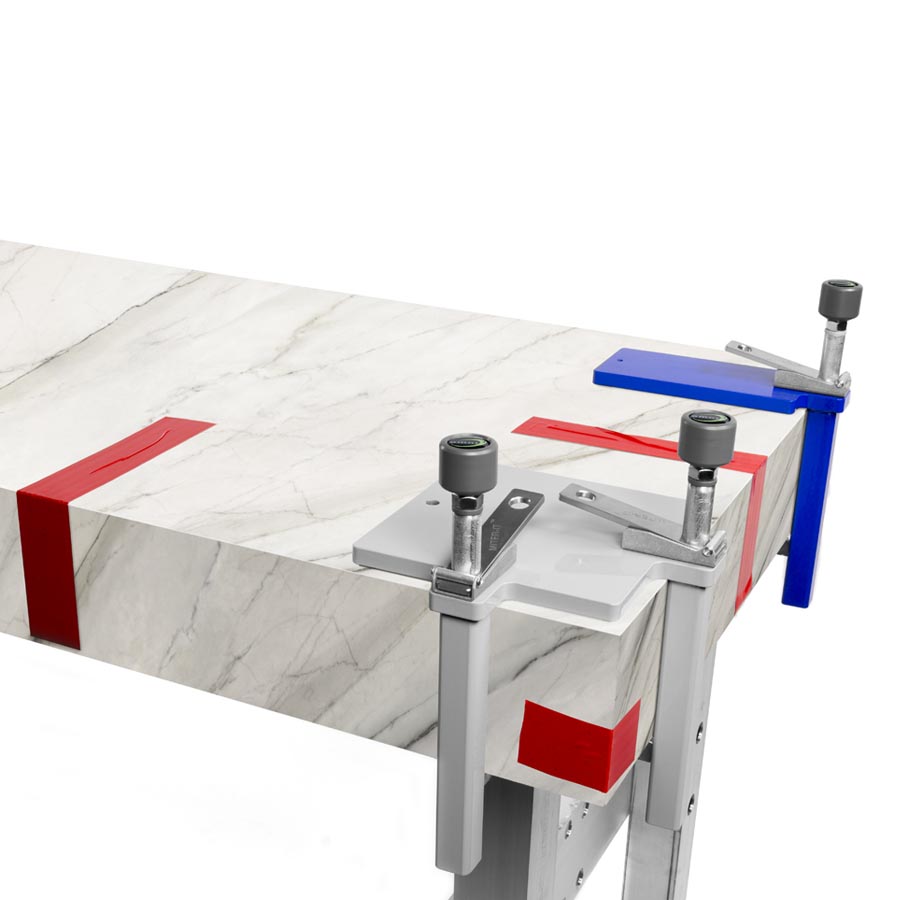

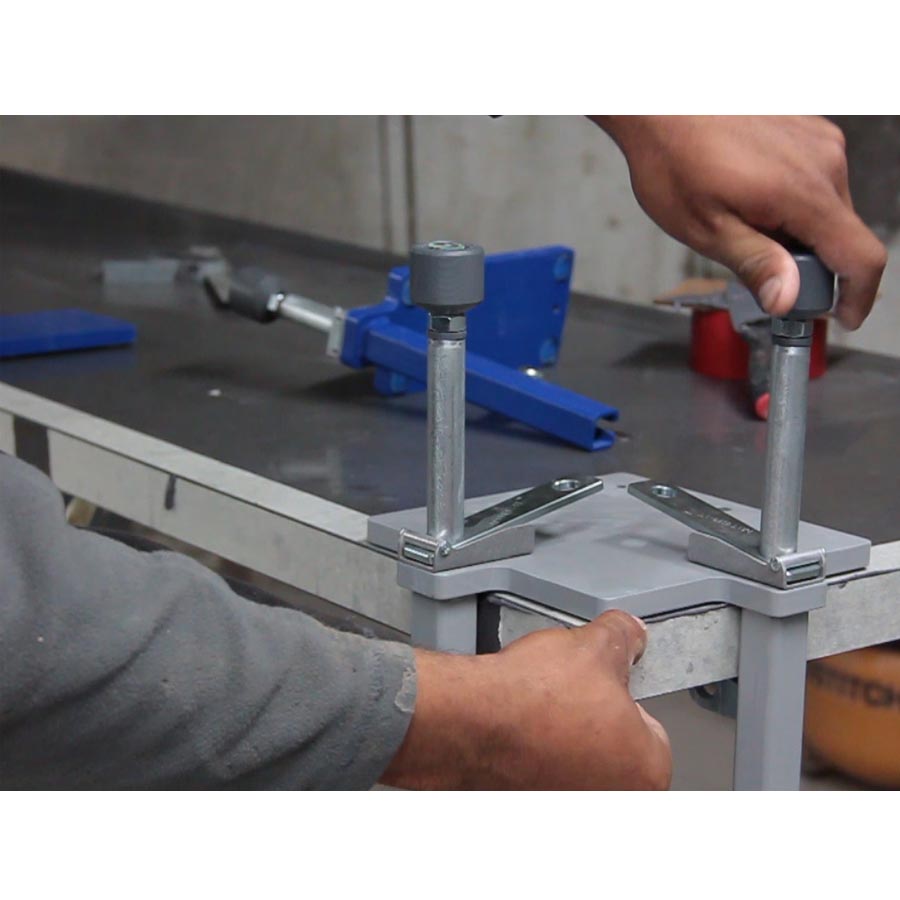

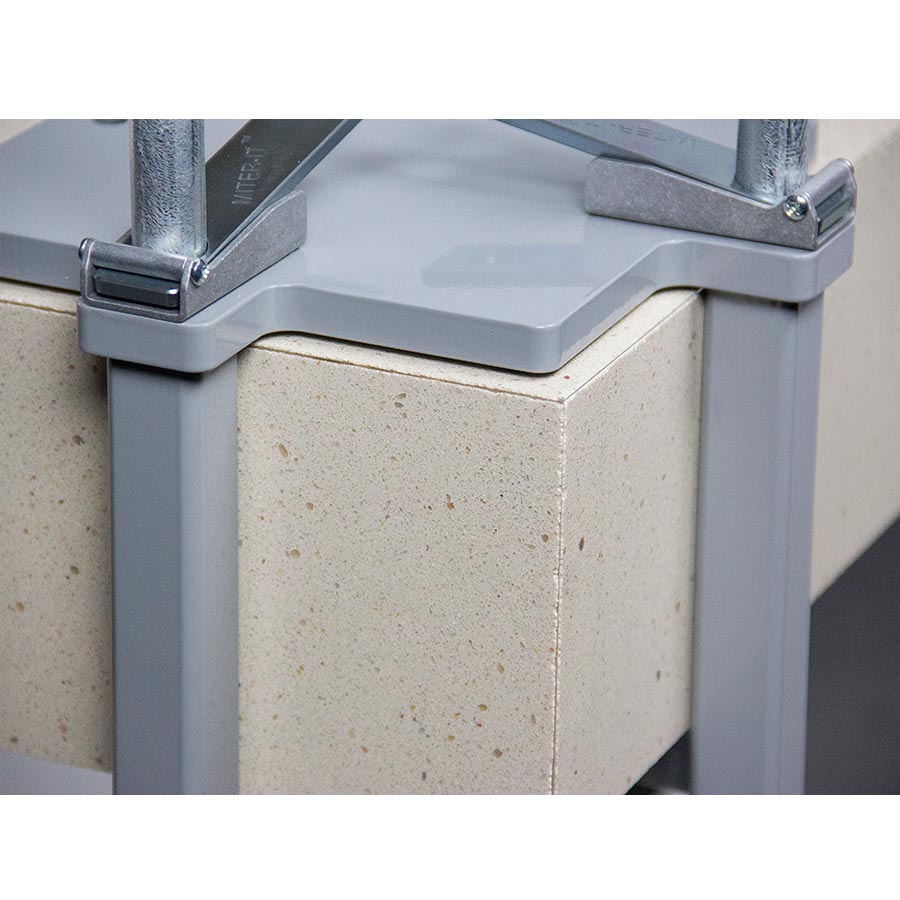

The Miter-It™ is an easy-to-use jig that allows finished-side-up miter laminations. Not flipping the material offers numerous benefits including increased safety for workers, reduced risk of damage to the material, and keeping the seam in view during lamination. The clamp offers coarse and fine adjustment settings for achieving exact seams. The Miter-It securely holds drop-down edges at 90°, eliminating the need for a helper to position the material. The jig's weight and non-marking, non-skid contact surface hold the product and miter piece in place—no suction cups needed. This simple, yet innovative tool greatly reduces the numerous awkward adjustments required with other miter clamps, and offers better results than taping methods alone. The heavy-duty steel design features a powder-coat finish and accommodates edges from 38mm to 152mm. Sold individually.

Typically, one jig every 2 to 4 feet is sufficient, but more may be used for extra long or heavy aprons. Wherever you would need a hand to hold the material, put a Miter-It™ there instead!

PATENT US9393765

• Miter finished side up; keep the seam in view
• No flipping for gluing; protect your back and the material
• Squares the miter with fast, easy adjustments, eliminating the need for a helper
• Coarse and fine adjustments for exact seams
• More efficient than taping methods alone
• Jig's weight and non-skid contact points hold it in place
• Highly durable steel construction with powder-coat finish
