Burkhardt ASR 80 Automatic High Storage Rack

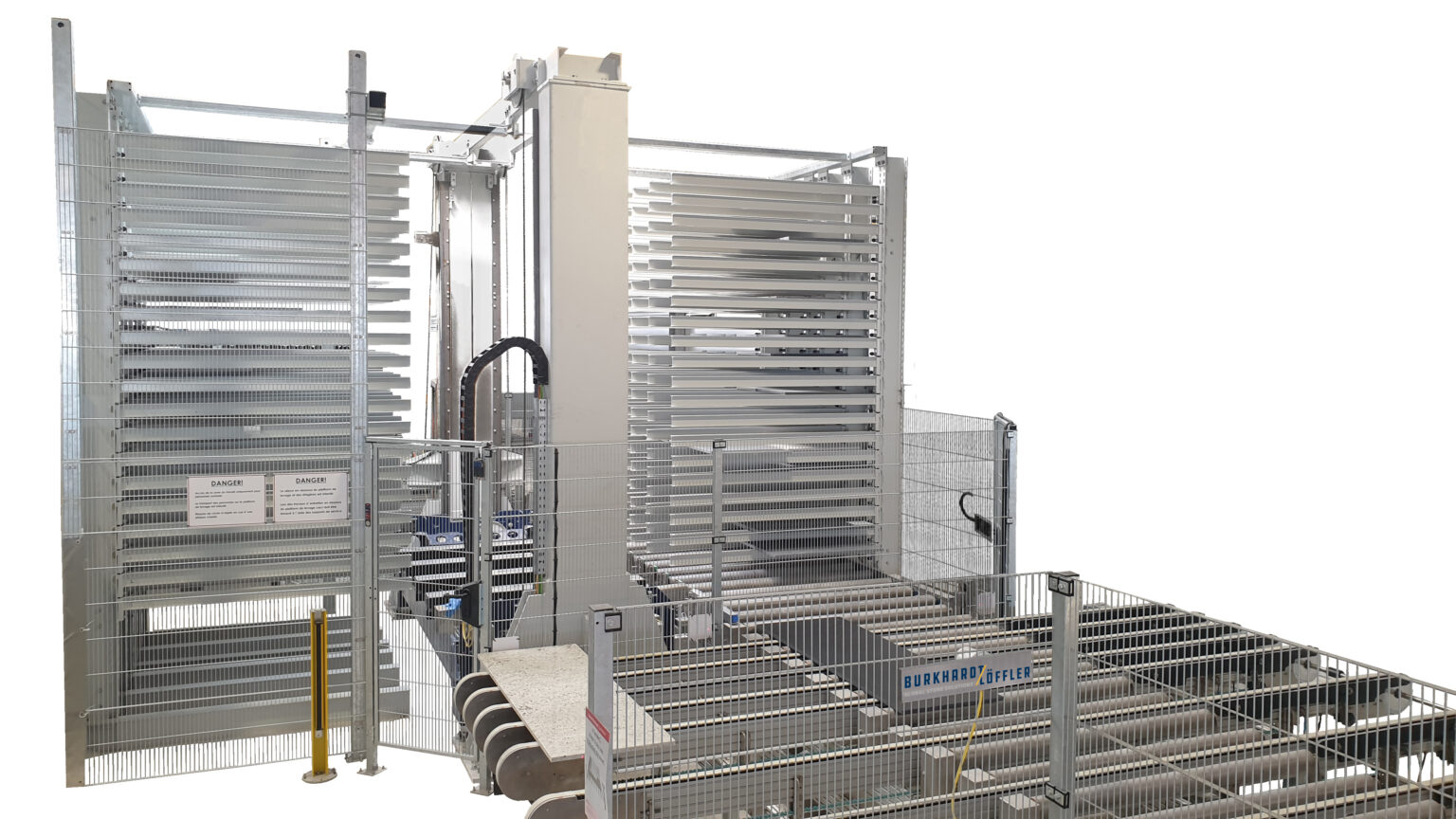

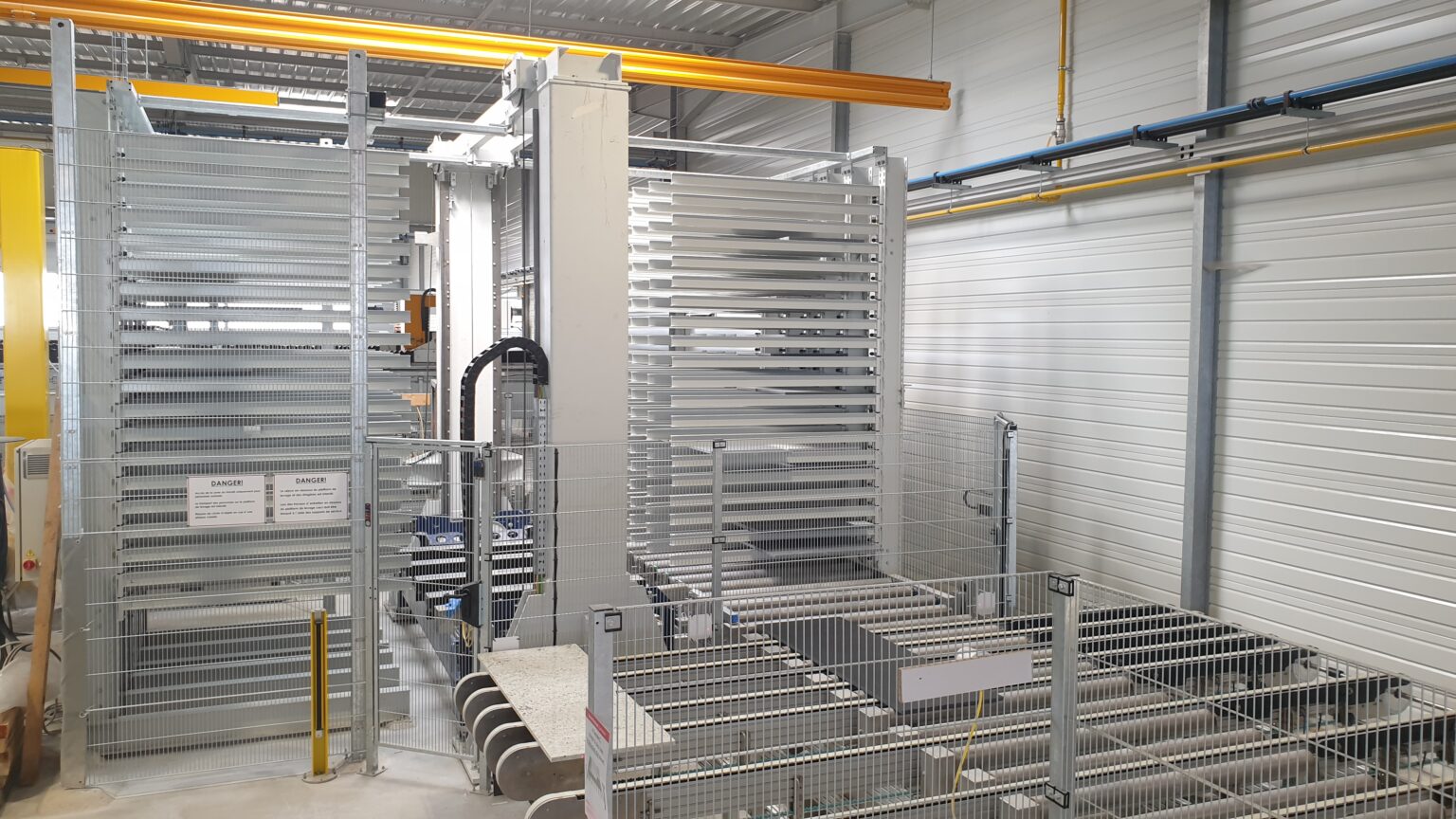

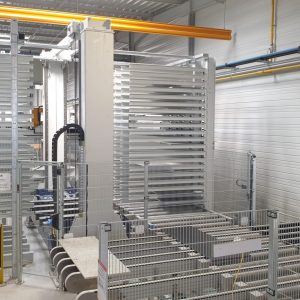

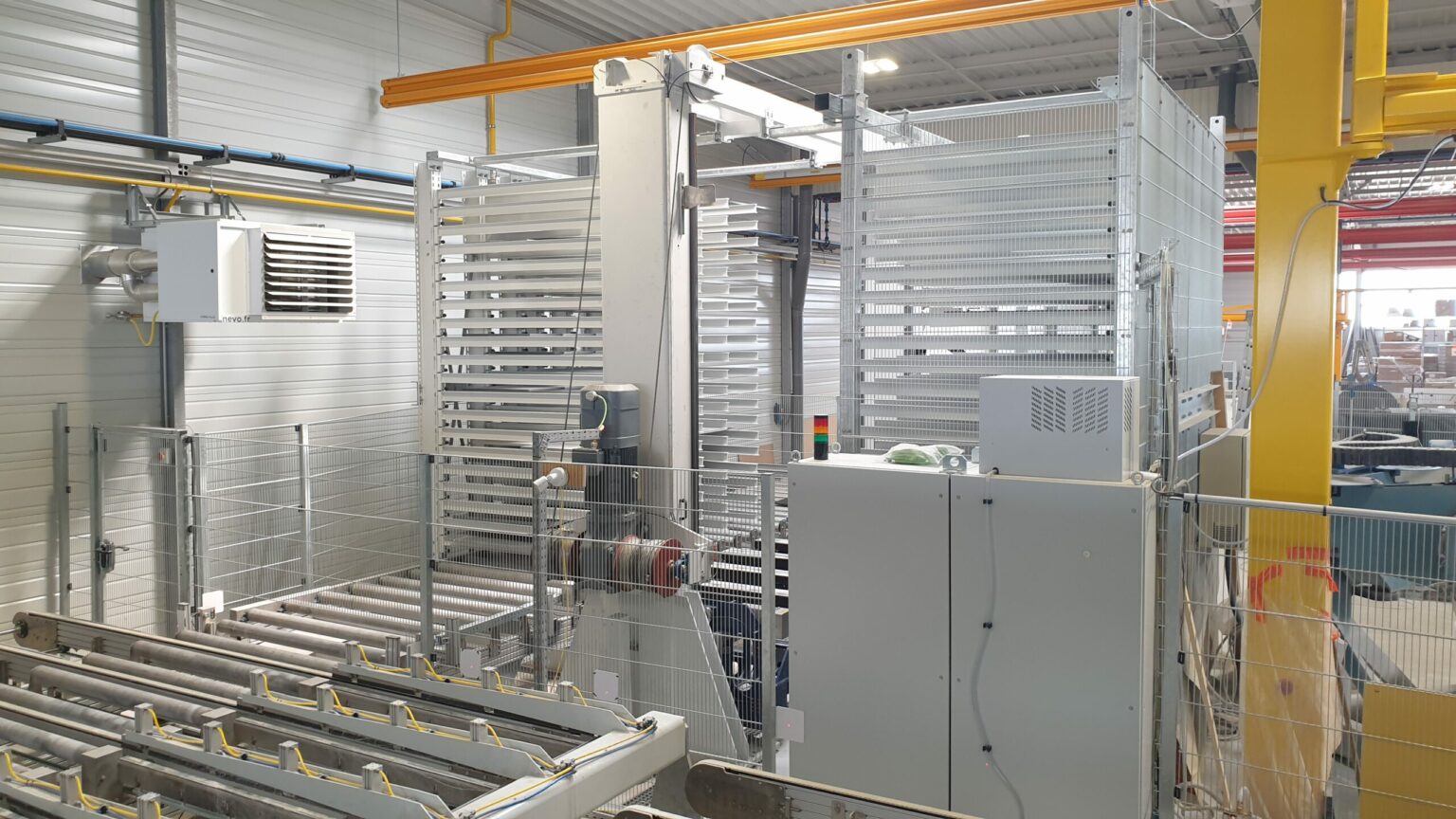

The compact ASR storage system offers space for up to 80 workpieces at a height of only 4,500 mm. It comprises a lifting platform with four telescopic forks that can be extended both directions. This allows the two cantilever racks arranged opposite each other to be automatically serviced.

The ASR storage system is suitable for intermediate storage within a production line as well as for storage or commissioning of finished workpieces.

Workpiece capacity:80 pieces
Workpiece size max: 3.300 mm x 1.550 mm
Workpiece size min: 600 mm x 40 mm
Max. Conveying time per workpiece max: 60 sec.
Max. Load carrying capacity per rack: 450 kg
Rack height approx: 4.500 mm
