• Gauging/calibrator: 0-90º
• Spindles for the edge: 7 (floating)
• Spindles for the bevels: 4
• Vertical spindle for polishing the underside calibrated edge
• Extendible bar to support bigger pieces
• Rollers for material loading/unloading
• Dimensions: 4500mm x 1250mm x 1800mm
• Weight: 3500kg
• Water: 150L/min
• Max. installed power: 20Kw

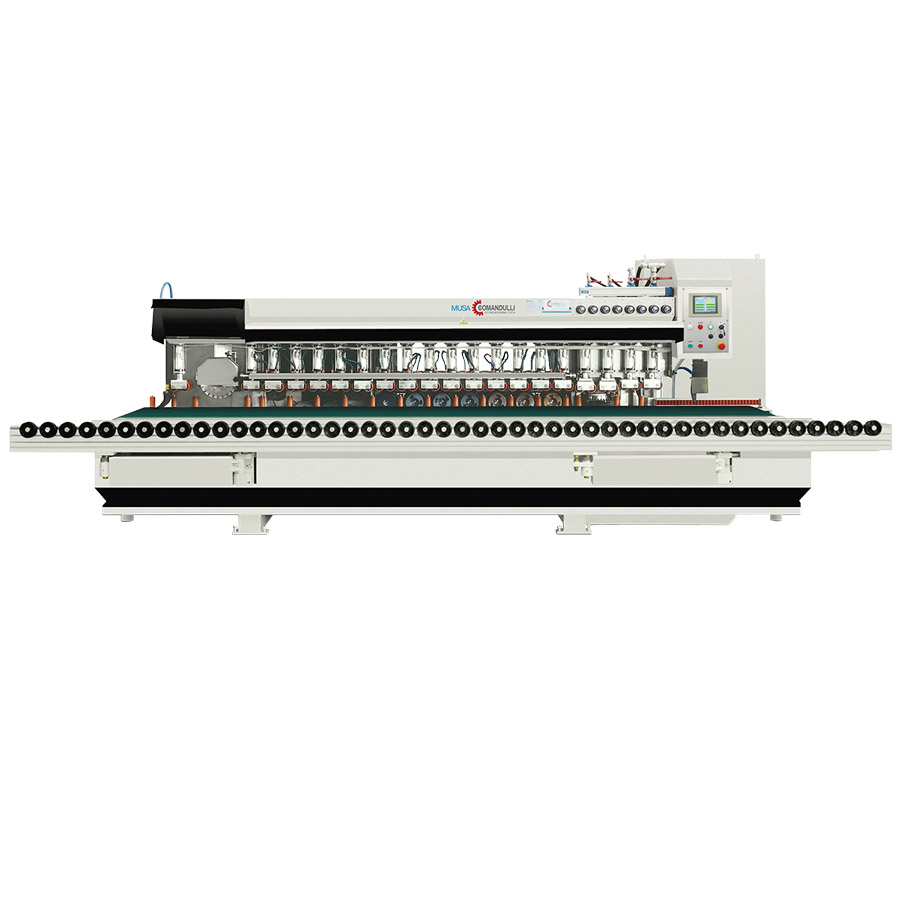

Belt Edge polishing machine for straight edge.
MUSA, so much value locked up in a compact design. Automatic belt edge polishing machine able to perform all the finishing field, furnishings and monuments. It performs gauging, straight edge, bevels, lower and upper groove through fast and simple procedures.
• TMM3 motorised spindles to guarantee a perfect bevel on the top & bottom edge
