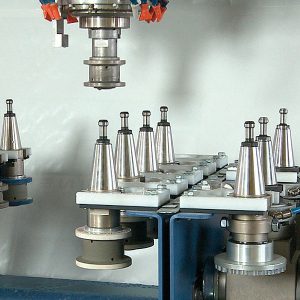

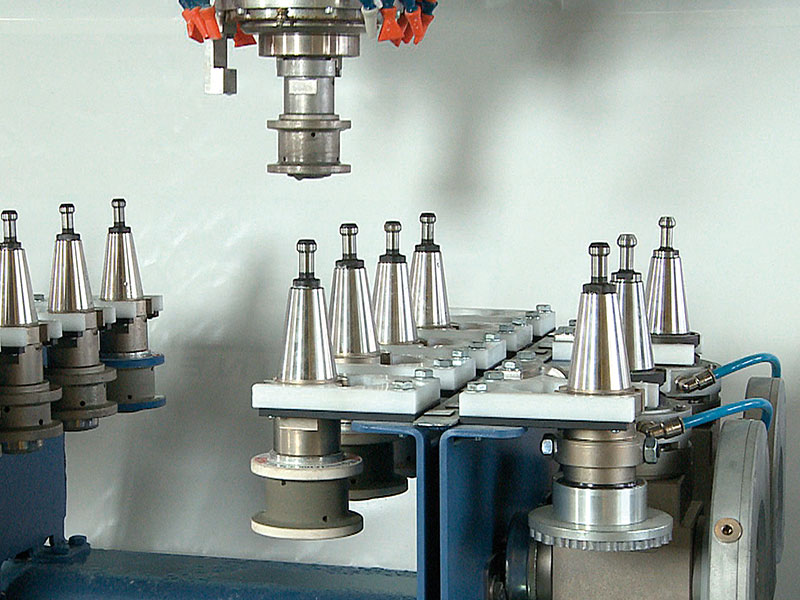

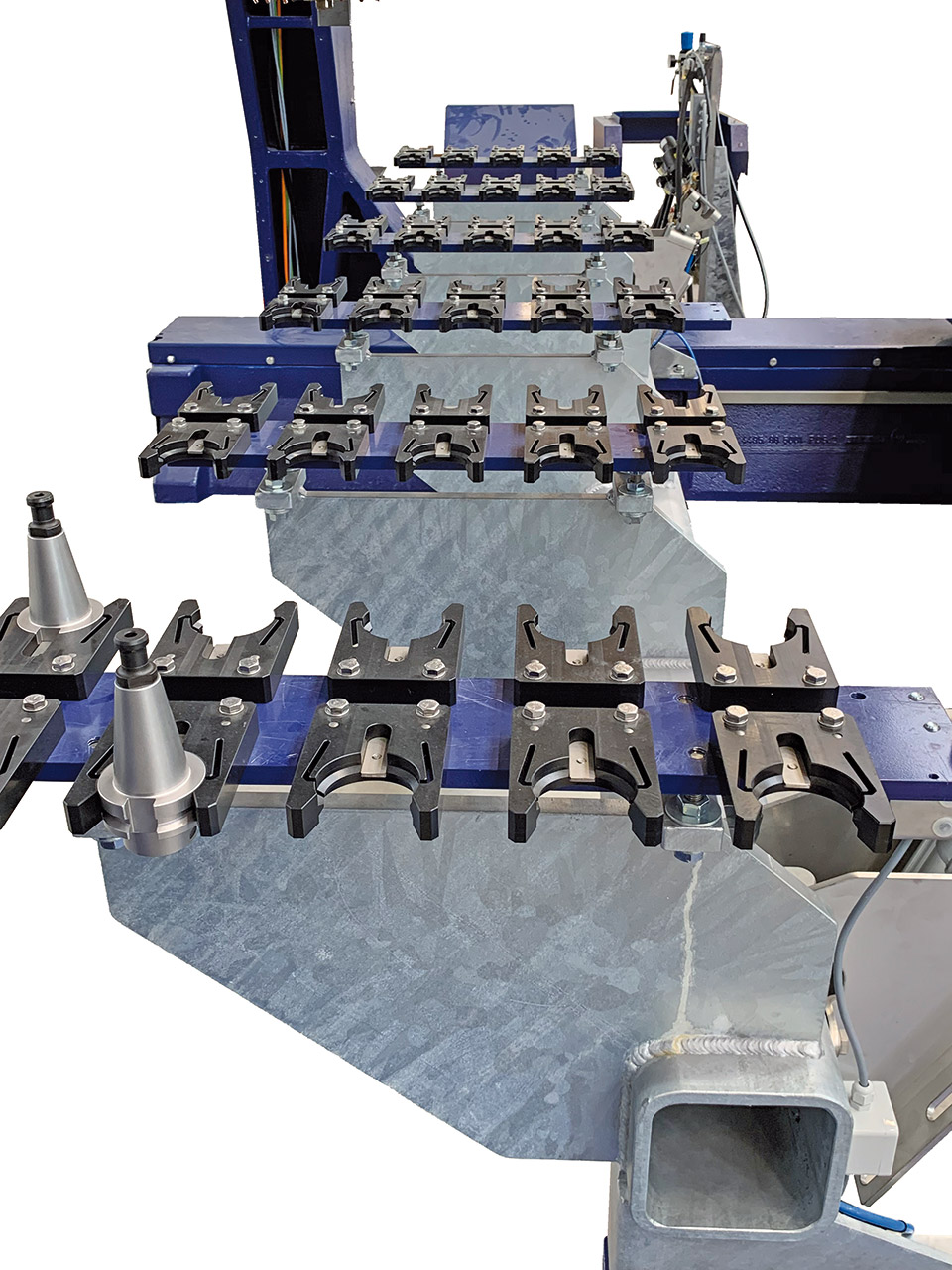

• Max. tools: 60/120
• Max. workpiece size: 3600mm x 1400mm
• Vertical travel: 450mm
• Feed rate: X,Y 65m/min, Z 25m/min
• Electro spindle: 15Kw
• Speed range: 0-10,000rpm
• Multi-table processing with compact dimensions
• Preloading of workpieces during production
• Good accessibility of workpieces and tool magazine
• Massive construction for avoiding vibration (16 Tonnes)
• High dynamic drives for minimization of non-productive time
• No foundation required (installation directly on weight bearing floor)
• Central lubrication included as standard
• Comprehensive monitoring functions for automatic operation
Optional
• Electronic contact pressure control for X,Y and Z Axis for grinding and polishing
• Clamping device for automatic vacuum pod positioning
