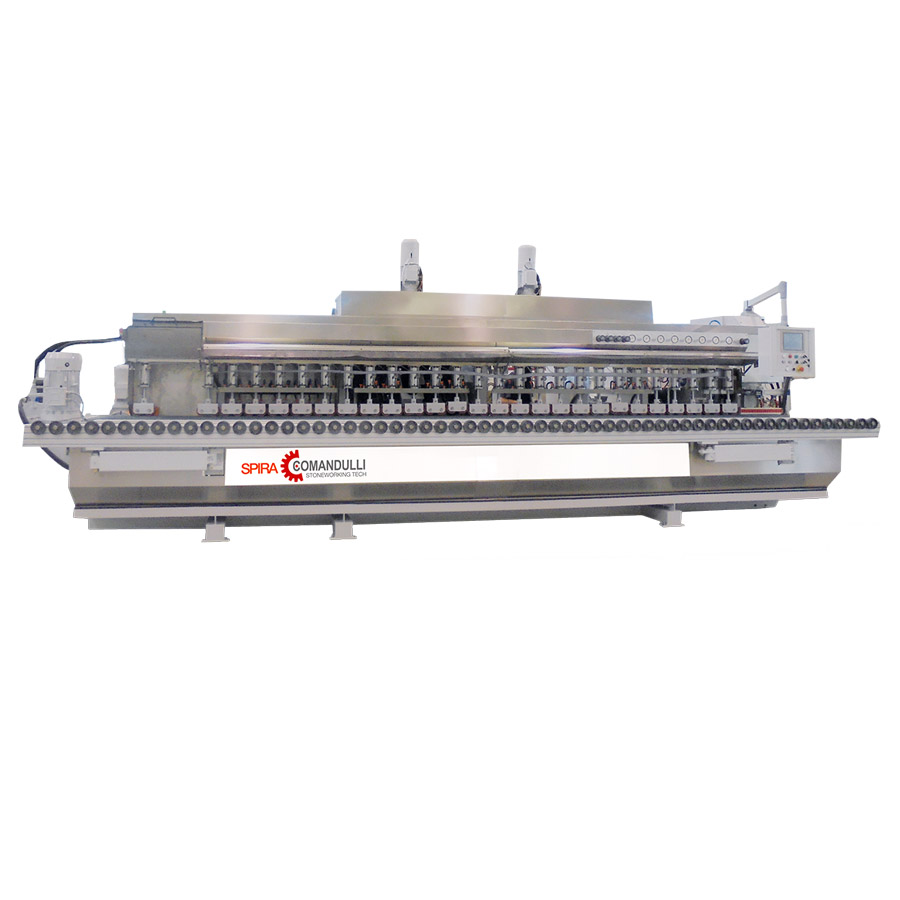

COMANDULLI Spira

The Comandulli Spira is a belt edge polishing machine for straight edges, polish pencil round profiles, flat edges and flat edge plus bevels.

Optional
• Motorized positioning of calibrator
• NEW DYNAMIC/SMART BELT SPEED FUNCTION: Machine equipped with special software that, during the automatic cycle, varies the belt speed automatically to reduce downtimes according to the kind of work and the tools to be utilised

Enquire REQUEST SAMPLE Book an appointment Find In Store

Categories: Wet Processing, Comandulli, Edge Processors

Description
Additional information

• 1 Calibrating Diamond 0-90degree
• 2 Diamond Bevelling Spindles (for pre-grinding the 45 degree bevels)
• 2 Pre-Profile Flat Polish Wheels (this helps create a flat 90 degree surface before polishing the arris or pencil round to create a sharp even edge for the profile abrasives to work)
• 8 Profile Polish Abrasives on Two Independent Bridges (for producing upper and lower arris and pencil round profiles)
• 5 Post-Profile Flat Polish Spindles (for finishing the flat polish making 7 spindles for the flat polish, these 5 spindles have the floating function)
• Extendable bar to support pieces with big dimensions
• Rollers for material loading/unloading
• Dimensions: 7700mm x 2200mm x 2420mm
• Weight: 5500kg

Product Type	Edge Processors – In-Line Multi Head
Brand	Comandulli

Moorabbin, Melbourne VIC	:	Available At This Store
Richmond, Melbourne VIC	:	Not Available At This Store
Moorebank, Sydney NSW	:	Available At This Store
Alexandria, Sydney NSW	:	Not Available At This Store
Arundel, Gold Coast QLD	:	Available At This Store
Hindmarsh, Adelaide	:	Available At This Store
Malaga, Perth WA	:	Available At This Store
